Prime Time: Docker, Juju, and Snappy Ubuntu Core

As you probably remember from grade school math class, primes are numbers that are only divisible by 1 and themselves.  2, 3, 5, 7, and 11 are the first 5 prime numbers, for example.

Many computer operations, such as public-key cryptography, depends entirely on prime numbers.  In fact, RSA encryption, invented in 1978, uses a modulo of a product of two very large primes for encryption and decryption.  The security of asymmetric encryption is tightly coupled with the computational difficulty in factoring large numbers.  I actually use prime numbers as the status update intervals in Byobu, in order to improve performance and distribute the update spikes.

Euclid proved that there are infinitely many prime numbers around 300 BC.  But the Prime Number Theorem (proven in the 19th century) says that the probability of any number is prime is inversely proportional to its number of digits.  That means that larger prime numbers are notoriously harder to find, and it gets harder as they get bigger!
What's the largest known prime number in the world?

Well, it has 17,425,170 decimal digits!  If you wanted to print it out, size 11 font, it would take 6,543 pages -- or 14 reams of paper!

That number is actually one less than a very large power of 2.  257,885,161-1.  It was discovered by Curtis Cooper on January 25, 2013, on an Intel Core2 Duo.

Actually, each of the last 14 record largest prime numbers discovered (between 1996 and today) have been of that form, 2P-1.  Numbers of that form are called Mersenne Prime Numbers, named after Friar Marin Mersenne, a French priest who studied them in the 1600s.

Friar Mersenne's work continues today in the form of the Great Internet Mersenne Prime Search, and the mprime program, which has been used to find those 14 huge prime numbers since 1996.

mprime is a massive parallel, cpu scavenging utility, much like SETI@home or the Protein Folding Project.  It runs in the background, consuming resources, working on its little piece of the problem.  mprime is open source code, and also distributed as a statically compiled binary.  And it will make a fine example of how to package a service into a Docker container, a Juju charm, and a Snappy snap.

Docker Container

First, let's build the Docker container, which will serve as our fundamental building block.  You'll first need to download the mprime tarball from here.  Extract it, and the directory structure should look a little like this (or you can browse it here):

├── license.txt
├── local.txt
├── mprime
├── prime.log
├── prime.txt
├── readme.txt
├── results.txt
├── stress.txt
├── undoc.txt
├── whatsnew.txt
└── worktodo.txt

And then, create a Dockerfile, that copies the files we need into the image.  Here's our example.

FROM ubuntu
MAINTAINER Dustin Kirkland
COPY ./mprime /opt/mprime/
COPY ./license.txt /opt/mprime/
COPY ./prime.txt /opt/mprime/
COPY ./readme.txt /opt/mprime/
COPY ./stress.txt /opt/mprime/
COPY ./undoc.txt /opt/mprime/
COPY ./whatsnew.txt /opt/mprime/
CMD ["/opt/mprime/mprime", "-w/opt/mprime/"]

Now, build your Docker image with:

$ sudo docker build .
Sending build context to Docker daemon 36.02 MB
Sending build context to Docker daemon
Step 0 : FROM ubuntu
Successfully built de2e817b195f

Then publish the image to Dockerhub.

$ sudo docker push kirkland/mprime

You can see that image, which I've publicly shared here:

Now you can run this image anywhere you can run Docker.

$ sudo docker run -d kirkland/mprime

And verify that it's running:

$ sudo docker ps
CONTAINER ID        IMAGE                    COMMAND                CREATED             STATUS              PORTS               NAMES
c9233f626c85        kirkland/mprime:latest   "/opt/mprime/mprime    24 seconds ago      Up 23 seconds                           furious_pike

Juju Charm

So now, let's create a Juju Charm that uses this Docker container.  Actually, we're going to create a subordinate charm.  Subordinate services in Juju are often monitoring and logging services, things that run along side primary services.  Something like mprime is a good example of something that could be a subordinate service, attached to one or many other services in a Juju model.

Our directory structure for the charm looks like this (or you can browse it here):

└── trusty
    └── mprime
        ├── config.yaml
        ├── copyright
        ├── hooks
        │   ├── config-changed
        │   ├── install
        │   ├── juju-info-relation-changed
        │   ├── juju-info-relation-departed
        │   ├── juju-info-relation-joined
        │   ├── start
        │   ├── stop
        │   └── upgrade-charm
        ├── icon.png
        ├── icon.svg
        ├── metadata.yaml
        └── revision
3 directories, 15 files

The three key files we should look at here are metadata.yaml, hooks/install and hooks/start:

$ cat metadata.yaml
name: mprime
summary: Search for Mersenne Prime numbers
maintainer: Dustin Kirkland
description: |
  A Mersenne prime is a prime of the form 2^P-1.
  The first Mersenne primes are 3, 7, 31, 127
  (corresponding to P = 2, 3, 5, 7).
  There are only 48 known Mersenne primes, and
  the 13 largest known prime numbers in the world
  are all Mersenne primes.
  This charm uses a Docker image that includes the
  statically built, 64-bit Linux binary mprime
  which will consume considerable CPU and Memory,
  searching for the next Mersenne prime number.
  See for more details!
  - misc
subordinate: true
    interface: juju-info
    scope: container


$ cat hooks/install
apt-get install -y
docker pull kirkland/mprime


$ cat hooks/start
service docker restart
docker run -d kirkland/mprime

Now, we can add the mprime service to any other running Juju service.  As an example here, I'll --bootstrap, deploy the Apache2 charm, and attach mprime to it.

$ juju bootrap
$ juju deploy apache2
$ juju deploy cs:~kirkland/mprime
$ juju add-relation apache2 mprime

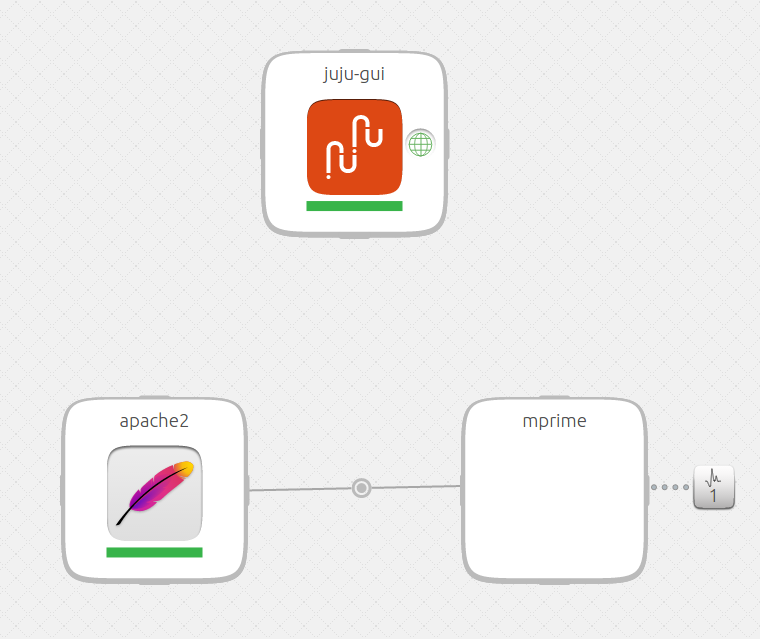

Looking at our services, we can see everything deployed and running here:

$ juju status
    charm: cs:trusty/apache2-14
    exposed: false
      current: unknown
      since: 20 Jul 2015 11:55:59-05:00
      - mprime
          current: unknown
          since: 20 Jul 2015 11:55:59-05:00
          current: idle
          since: 20 Jul 2015 11:56:03-05:00
          version: 1.24.2
        agent-state: started
        agent-version: 1.24.2
        machine: "1"
              current: unknown
              since: 20 Jul 2015 11:58:52-05:00
              current: idle
              since: 20 Jul 2015 11:58:56-05:00
              version: 1.24.2
            agent-state: started
            agent-version: 1.24.2
            upgrading-from: local:trusty/mprime-1
    charm: local:trusty/mprime-1
    exposed: false
    service-status: {}
      - apache2
    - apache2

Snappy Ubuntu Core Snap

Finally, let's build a Snap.  Snaps are applications that run in Ubuntu's transactional, atomic OS, Snappy Ubuntu Core.

We need the simple directory structure below (or you can browse it here):

├── meta
│   ├── icon.png
│   ├── icon.svg
│   ├── package.yaml
│   └──
1 directory, 5 files

The package.yaml describes what we're actually building, and what capabilities the service needs.  It looks like this:

name: mprime
vendor: Dustin Kirkland
architecture: [amd64]
icon: meta/icon.png
version: 28.5-11
  - docker
  - name: mprime
    description: "Search for Mersenne Prime Numbers"
      - docker_client
      - networking

And the launches the service via Docker.

docker rm -v -f mprime
docker run --name mprime -d kirkland/mprime
docker wait mprime

Now, we can build the snap like so:

$ snappy build .
Generated 'mprime_28.5-11_amd64.snap' snap
$ ls -halF *snap
-rw-rw-r-- 1 kirkland kirkland 9.6K Jul 20 12:38 mprime_28.5-11_amd64.snap

First, let's install the Docker framework, upon which we depend:

$ snappy-remote --url ssh://snappy-nuc install docker
Installing docker from the store
Installing docker
Name          Date       Version   Developer
ubuntu-core   2015-04-23 2         ubuntu
docker        2015-07-20
webdm         2015-04-23 0.5       sideload
generic-amd64 2015-04-23 1.1

And now, we can install our locally built Snap.
$ snappy-remote --url ssh://snappy-nuc install mprime_28.5-11_amd64.snap
Installing mprime_28.5-11_amd64.snap from local environment
Installing /tmp/mprime_28.5-11_amd64.snap
2015/07/20 17:44:26 Signature check failed, but installing anyway as requested
Name          Date       Version   Developer
ubuntu-core   2015-04-23 2         ubuntu
docker        2015-07-20
mprime        2015-07-20 28.5-11   sideload
webdm         2015-04-23 0.5       sideload
generic-amd64 2015-04-23 1.1

Alternatively, you can install the snap directly from the Ubuntu Snappy store, where I've already uploaded the mprime snap:

$ snappy-remote --url ssh://snappy-nuc install mprime.kirkland
Installing mprime.kirkland from the store
Installing mprime.kirkland
Name          Date       Version   Developer
ubuntu-core   2015-04-23 2         ubuntu
docker        2015-07-20
mprime        2015-07-20 28.5-11   kirkland
webdm         2015-04-23 0.5       sideload
generic-amd64 2015-04-23 1.1


How long until this Docker image, Juju charm, or Ubuntu Snap finds a Mersenne Prime?  Almost certainly never :-)  I want to be clear: that was never the point of this exercise!

Rather I hope you learned how easy it is to run a Docker image inside either a Juju charm or an Ubuntu snap.  And maybe learned something about prime numbers along the way ;-)
